Nippel KR 1/4" UTV

LUN199903691

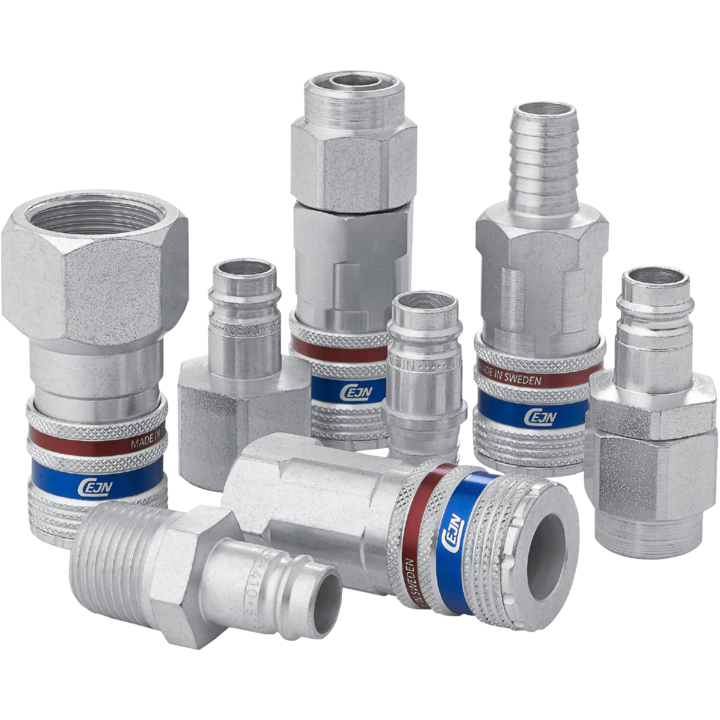

Flow diameter 10.4 mm. 3900 l/min. Quick couplings with sleeve and body of steel, now surface treated with environment friendly chrome-6 free electric zinc plating, which has improved durability and additional corrosion protection. Series 410 is an one-hand operated with a low connection force and extremely high flow capacity. The coupling is sleeve sealed for maximum tightness. Quick coupling with exceptional high capacity. A 6 bar inlet pressure and only 0.5 bar pressure drop the series 410 has a flow capacity of 3900 l/min. Max recommended working pressure: 16 bar. Min bursting pressure: 140 bar. Temperature range: -20°C - +100°C.
Interchangeable with Rectus 27.
